Break Motor
We Offer:

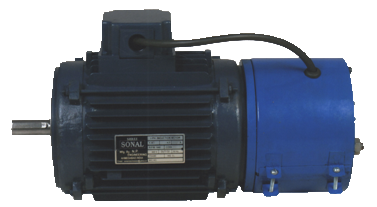

Detail : Brake Motor are for various applications Requiring almost instant stopping of drive load.
The motor brake in case of power supply failure ensuring further to a precise stop and quick bracking action, the security of sudden inter venation in case of an unintentional power supply failure (i.e. power supply black-out. equipment failure.) This brake call fail safe brake. The braking action is obtained without axial sliding of shaft and provided equal braking torque in both directions of rotations.
Basically brake motor combination of an a.c. induction motor and a disc type, fail safe Electromagnetic brake unit. Brake motor are mfg. as per application motor available in foot,Brake Motor are specially suitable to be used with lifting Machineries, Textile Machinery, Geared motor, Cable Reeling Drums, Rolling Mills, Machine tools.
We can also supply electromagnetic single face brake on customer request (this brake is not failsafe). for textile application. This brake is operation by power supply D.C.
Rotor is positive locking with shaft key joint so that can not move on high full lord torque.
0.25 h.p. to 3 h.p. with A.C. brake
Insulation class B & F (H. class also supplied on customer Request.)
Brake Motor Diomensions
The motor brake in case of power supply failure ensuring further to a precise stop and quick bracking action, the security of sudden inter venation in case of an unintentional power supply failure (i.e. power supply black-out. equipment failure.) This brake call fail safe brake. The braking action is obtained without axial sliding of shaft and provided equal braking torque in both directions of rotations.
Basically brake motor combination of an a.c. induction motor and a disc type, fail safe Electromagnetic brake unit. Brake motor are mfg. as per application motor available in foot,Brake Motor are specially suitable to be used with lifting Machineries, Textile Machinery, Geared motor, Cable Reeling Drums, Rolling Mills, Machine tools.
We can also supply electromagnetic single face brake on customer request (this brake is not failsafe). for textile application. This brake is operation by power supply D.C.
Rotor is positive locking with shaft key joint so that can not move on high full lord torque.
0.25 h.p. to 3 h.p. with A.C. brake
Insulation class B & F (H. class also supplied on customer Request.)
Brake Motor Diomensions
| Range | Technical Data | Diomensions | |||||||
| Brak O.D. | PCD | A | B | C | D | E | Color Diometer | Tapping | |
| NP-130 | 120 | 85 | 2 | 1 | 25 | 5*2.5 | 14 | 70 | M6*4 |
| NP-140 | 133 | 100 | 2 | 1 | 25 | 6*3 | 16 | 80 | M6*4 |
| NP-150 | 153 | 100 | 3 | 1 | 28 | 6*3 | 19 | 80 | M8*4 |
| NP-150X | 153 | 100 | 3 | 7 | 45 | 8*4 | 24 | 80 | M8*4 |
| NP-190 | 193 | 130 | 3 | 1 | 28 | 8*4 | 28 | 110 | M8*4 |
| NP-190X | 193 | 130 | 3 | 7 | 45 | 8*4 | 28 | 110 | M8*4 |
| NP-235 | 235 | 175 | 3 | 1 | 28 | 10*5 | 38 | 105 | M10*4 |
| NP-235X | 235 | 175 | 3 | 7 | 45 | 10*5 | 38 | 105 | M10*4 |
| NP-290 | 275 | 175 | 3 | 12 | 28 | 10*5 | 38 | 115 | M10*4 |
| NP-290X | 275 | 175 | 3 | 12 | 45 | 10*5 | 42 | 115 | M10*4 |
| NP-290XX | 275 | 175 | 3 | 12 | 60 | 12*6 | 42 | 115 | M10*4 |
