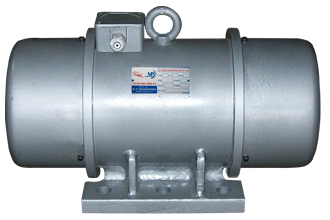

Vibrating Motor
We Offer:
Detail : : Unbalance vibratory motor with special tough design is used as drive for the vibrating machines. The applications are feeding, screening, discharging etc. The vibration motors are available in 2800, 1440, 960 and 750 RPM. The special features includes sturdy frame with stiffing ribs, Body Fabricated with high grade ductile iron, Extra-large dia. Of Shaft to resist bending under high centrifugal force, Fitted with heavy duty cylindrical roller bearing, specially varnished winding with terminal box to withstand tough operating conditions, Specially designed electrical parameters for cool operation condition. Vibration motors are available from 0.25 HP to 10 HP in foot mounted design or flange mounted type. Vibration motor are widely used in process plants, Glass, Food, Metal, Coal power plant, Chemical, Ceramic, Iron and steel, Foundries, Packaging industries etc.
Unbalanced vibratory motor in 2,4,6 or 8 pole design motor available in flange or foot mounted. In brief movable unbalance plates can be adjusting on circumference for easy tracing of the weight which serves oscillation width from zero to maximum.
Range: 5 HP and 3 Phase
Application : Conveying, Compacting, Emptying, Cleaning, Testing & Feeding of all kind of products, process can be achieved with help of vibratory motor.
Loosening & separation of bulk material screening, dewatering, filtration, crushing.
Unbalanced vibratory motor in 2,4,6 or 8 pole design motor available in flange or foot mounted. In brief movable unbalance plates can be adjusting on circumference for easy tracing of the weight which serves oscillation width from zero to maximum.
Range: 5 HP and 3 Phase Application : Conveying, Compacting, Emptying, Cleaning, Testing & Feeding of all kind of products, process can be achieved with help of vibratory motor.
Loosening & separation of bulk material screening, dewatering, filtration, crushing.
DIMENSIONAL DETAILS FOR THE FOOT MOUNTED HEAVY DUTY VIBRATION MOTORS
| Model No. | Power Input HP | A | B | Mounting Hole Dia xNos.Of Holes |
Moc. Centrif. Force Kgs |
| NP-BD-01 | 0.25 | 80 | 85 | 12.5X4 | 350 |
| NP-BD-02 | 0.5 | 128 | 85 | 12.5X4 | 750 |
| NP-BD-03 | 1 | 128 | 108 | 19X4 | 1800 |
| NP-BD-04 | 2 | 143 | 145 | 19X4 | 3500 |
| NP-BD-05 | 3 | 185 | 140 | 25X4 | 4500 |
| NP-BD-06 | 5 | 210 | 172 | 25X6 | 5500 |
| NP-BD-07 | 7.5/10 | 272 | 200 | 25X6 | 9000 |
DIMENSIONAL DETAILS FOR THE FLANGE MOUNTED HEAVY DUTY VIBRATION MOTORS
| Model No. | Power Input HP | A | B | Mounting Hole Dia xNos.Of Holes |
Moc. Centrif. Force Kgs |
| NP-BD-01 | 0.25 | 80 | 85 | 12.5 mm X 4 nos | 350 |
| NP-BD-02 | 0.5 | 120 | 85 | 12.5 mm X 4 nos | 750 |
| NP-BD-03 | 1 | 140 | 108 | 17 mm X 4 nos | 1800 |
| NP-BD-04 | 2 | 152 | 130 | 21 mm X 4 nos | 3500 |
| NP-BD-05 | 3 | 175 | 180 | 25 mm X 4 nos | 4500 |
| NP-BD-06 | 5 | 248 | 208 | 27 mm X 6 nos | 5500 |
| NP-BD-07 | 7.5 | 248 | 208 | 27 mm X 6 nos | 9000 |
| NP-BD-08 | 10 | 300 | 235 | 27 mm X 6 nos | 12000 |
